Smart Convenient Charging Wherever You Go
Electric vehicle/electric bus quick charger
480kW large capacity charger CEC-4800
POWER BANK + 2CH DISPENSER configuration
Support single charging and simultaneous charging / sequential charging
Increased user visibility and improved user convenience by installing a 13-inch large LCD
Screen usage composition focusing on ease of use
Reinforced painting quality and durability even in external installation environments
Electric bus charging possible

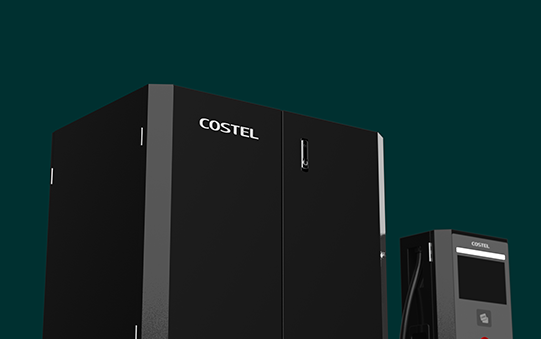

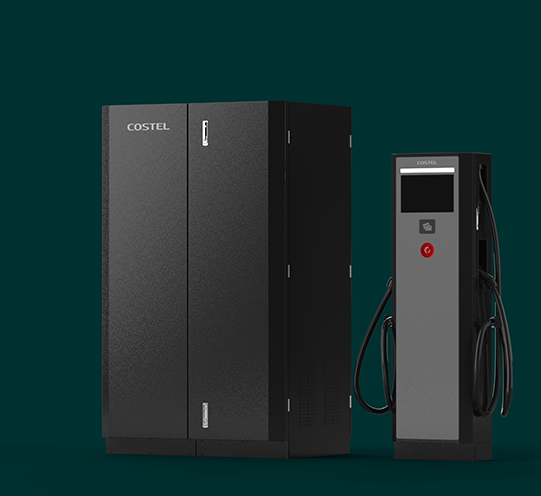

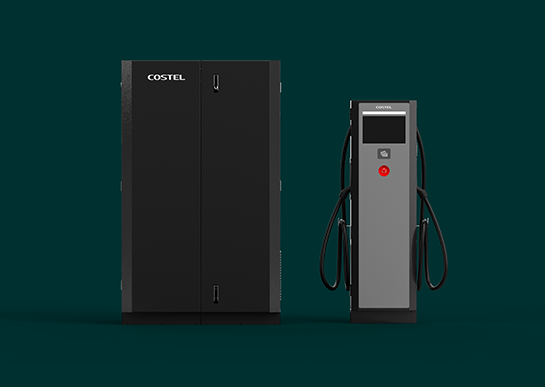

480kW large capacity charger
POWER BANK + 2CH DISPENSER configuration
Support single charging and simultaneous charging / sequential charging

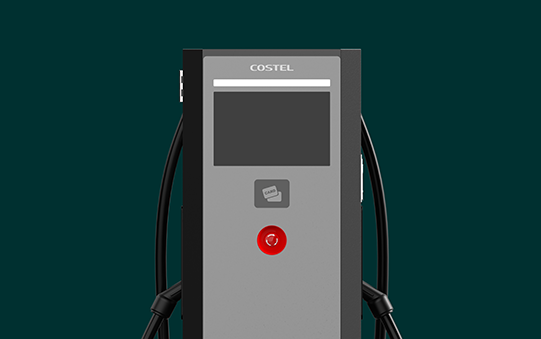

13.3” large LCD screen
Increased user visibility and improved user convenience by installing a 13-inch large LCD
Securing durability in external installation environment
Reinforced coating quality ensures durability even in external installation environments
Product name
Electric vehicle quick charger
model name
CEC-4800
Rated input
3-phase4-wire, 380Vac, 752A, 60Hz, 480kW
Rated power
Independent charging : 1000Vdc, 200A 200kW
Simultaneous charging 2 channels/4 channels(sequential charging) supported : 120kW per channel
Charging method
Combo 2
Efficiency and power factor
93%or more / 0.95 or more
User authentication
RF CARD
Status indication
Status LED
Communication function
RS-485, RS-232, CAN
Cooling method
Forced air cooling
Painting thickness
60㎛ or more
size
1200(W) × 2000(H) × 900(D)
IP class
IP54
Safety function
Input/output overvoltage, overcurrent detection, temperature abnormality,output leakage detection, emergency stop button
It is subject to change without notice due to the improvement of the appearance or function of the product.
