Smart Convenient Charging Wherever You Go
Electric vehicle charger
CEC-3713SR/SC
Slow charger (7kW)
Costel's unique design IDENTITY
7-inch LCD screen allows you to check the vehicle's charging status
User authentication through Credit card and RFID method
Application of apartment charging management operation system
Charging status can be checked on mobile through the Homenet APP

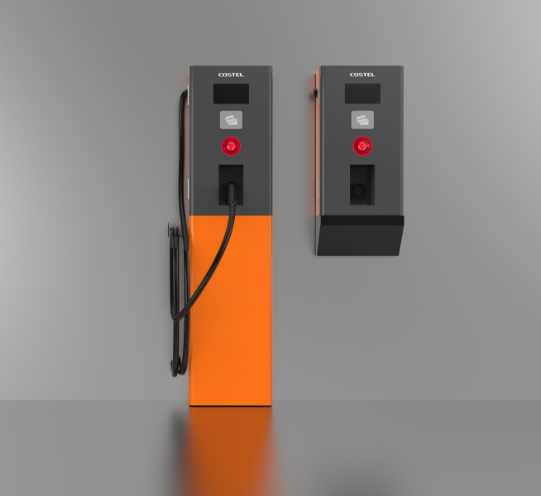

Stand type, two types of wall mount
Easy and fast by credit card and RFID method
User management
User authentication through RFID method
Application of apartment charging management operation system
SMART charging check through APP
7-inch LCD screen allows you to check the vehicle's charging status
Charging status can be checked on mobile through the Homenet APP

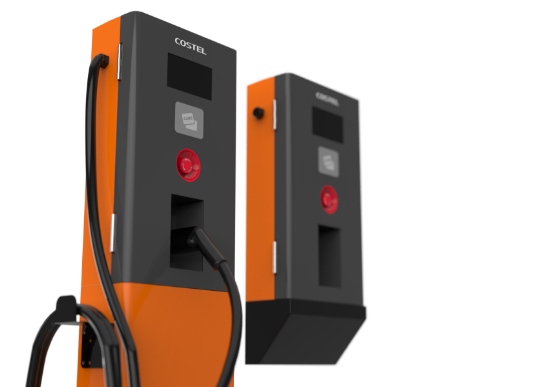

Modern design that fits any place

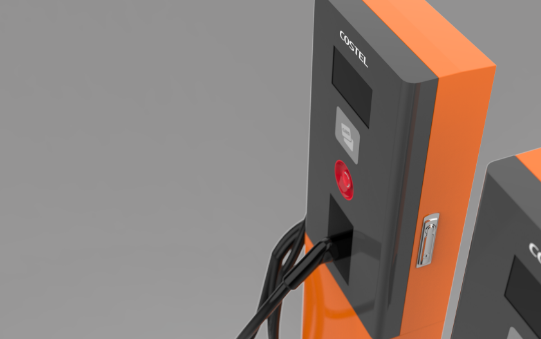

Costel's unique design IDENTITY

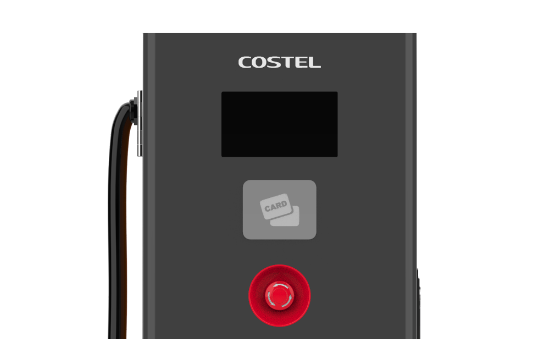

7 inch touch screen
Easy and fast graphic user interface
Easy and fast touch screen UI
Product name | CEC-3713 SR/SC |
---|---|
Input | single phase 220V AC, 60Hz, 7kW> |
Output | single phase 220V AC, 60Hz, 7kW |
Environmental conditions | temperature : -25℃ ~ 40℃ Humidity : 20% ~ 93% (however, there should be no condensation) |
Operation Screen | 7" LCD Touch Screen(U/I) |
User authentication | RF Card (SR) |
Charging time | within 4 hours (based on 24kWh battery capacity) |
Degree of protection | IP44 |
Product size | 370(W) x 170(D) x 1500(H)mm |
Certification | KC certification |
Charging type | SAE J1772 |
