Smart Convenient Charging Wherever You Go

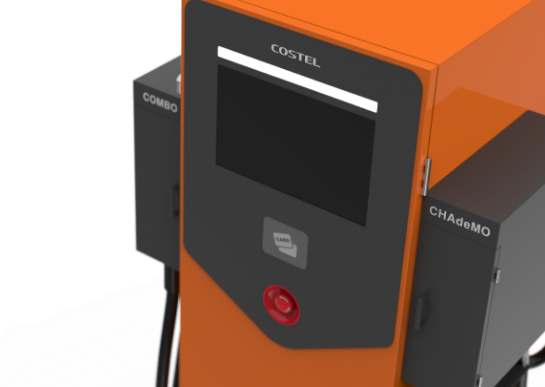

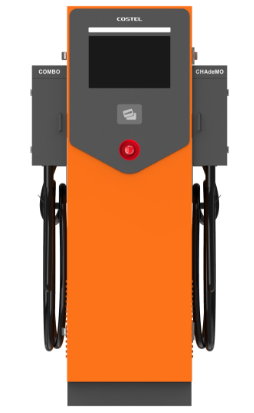

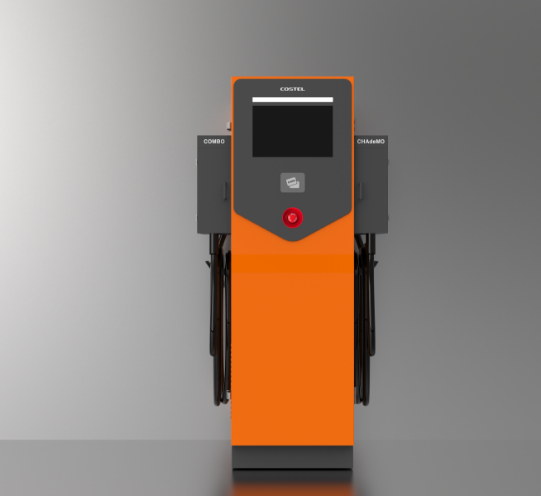

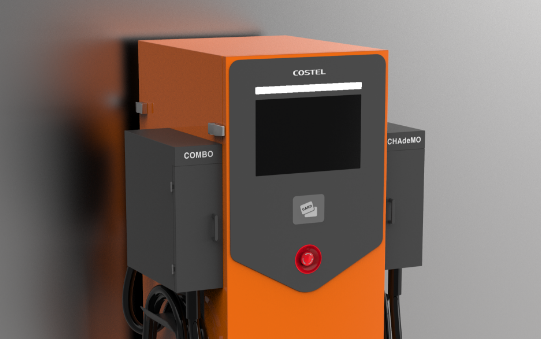

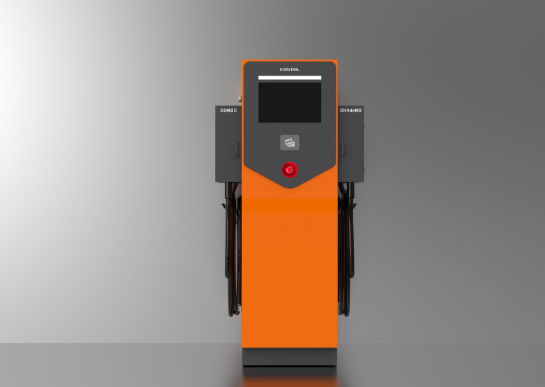

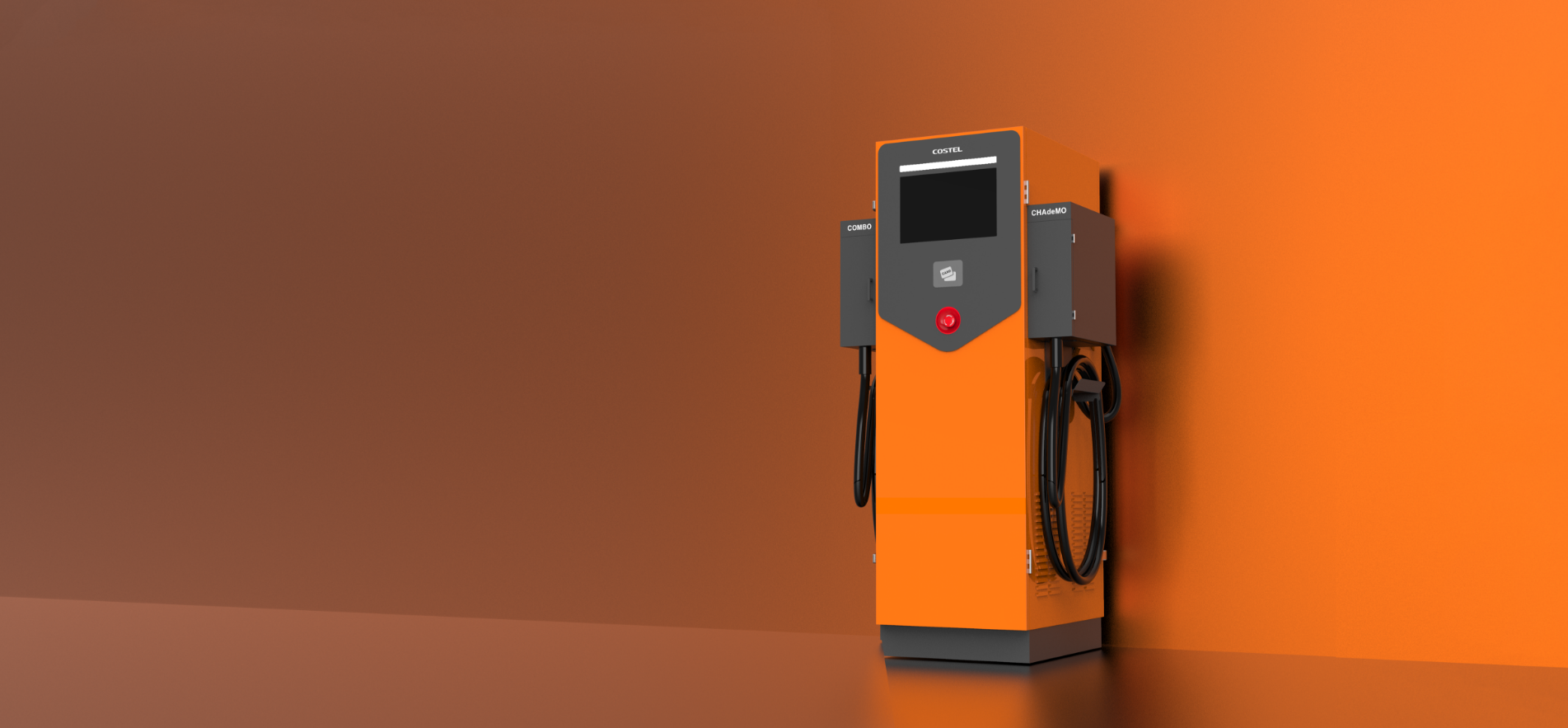

Smart 2WAY Quick charger
CEC-0520BR/BC
(50kW Quick Charger)
Unique design identity
13.3” large LCD screen
User authentication through RFID method
Charging management system for living complex
Remote control through home-net mobile APP
User authentication through RFID method
Charging management system for living complex
Remote control through home-net mobile APP
13.3” large LCD screen
Unique design identity
Unique design identity
13.3” large LCD screen
Easy and Fast GUI
| Product name | CEC-0520 BR/BC | |
|---|---|---|
| Charging type | rapid DC (CHAdeMo) |
rapid DC (SAE Combo Type 1) |
| Input | 3-phase 380VAC, 60㎐ | |
| Output | DC 200~450V, 120A, 50kW | |
| Environmental conditions |
temperature : -25℃ ~ 40℃ Humidity : 20% ~ 93% (however, there should be no condensation) |
|
| Operation Screen | 13” LCD Touch Screen (U/I) | |
| User authentication | RF card or Credit Card | |
| Charging time | within 30 minutes ( EV battery: based on 24kWh ) | |
| Degree of protection | IP44 | |
| Product size | 500(W) x 650(D) x 1600(H)mm | |
| Certification | KC Certification , high efficiency energy equipment certification | |
| Features | Improved power quality Built-in insulation transformer type | |
| connector |  |
 |
